Original price was: 18,000.00৳ .15,799.00৳ Current price is: 15,799.00৳ .
Model: PRO B650M-P
Supported CPU: Ryzen 9000/8000/7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 7200+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port, 1x VGA
Features: Realtek 8125BG 2.5G LAN
10 in stock
| Specification | |
|---|---|
| Processor | |
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors |
| Socket AM5 | |
| Mainboard | |
| Chipset | AMD B650 |
| BIOS | Flash BIOS Button |
| Memory | |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB |
| Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz | |
| • 1DPC 2R Max speed up to 6000+ MHz | |
| • 2DPC 1R Max speed up to 6000+ MHz | |
| • 2DPC 2R Max speed up to 5400+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO | |
| Storage | |
| Supported Storage | 2x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G | |
| Graphics | |
| Graphics | 1x HDMI |
| 1x DisplayPort | |
| Support HDMI 2.1, maximum resolution of 4K 60Hz | |
| Supports DP1.4, maximum resolution of 4K 60Hz | |
| Networking & Connectivity | |
| LAN | Realtek 8125BG 2.5G LAN |
| Audio & Microphone | |
| Audio | Realtek ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Ports | |
| Slots | 4 DIMMs |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 3x System Fan | |
| 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 2x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen2 Type C | |
| External I/O Ports | USB 3.2 Gen 2 10Gbps (Type-A) |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio connectors | |
| Flash BIOS Button | |
| DisplayPort | |
| HDMI™ | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 4x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| HDMI | 1x HDMI |
| Physical Specification | |
| Form Factor | mATX |
| Dimension | 243.84mmx243.84mm |
| Warranty Information | |
| Warranty | 3 YEARS |

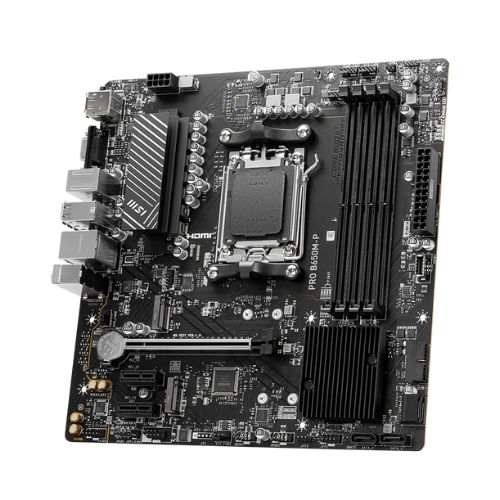

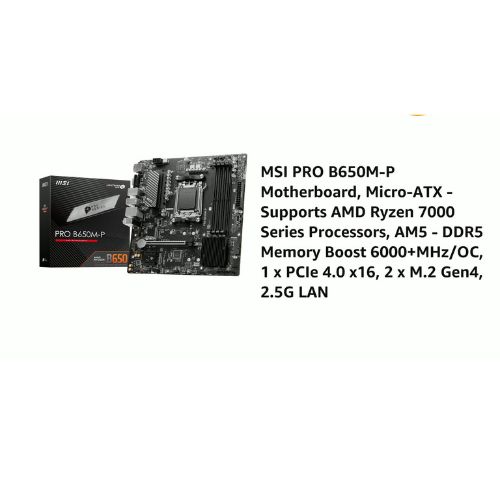

The MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard is a next-generation foundation for modern PC builds, delivering cutting-edge features, powerful performance, and robust stability in a compact micro-ATX form factor. Tailored for professionals, gamers, and PC enthusiasts alike, this motherboard takes full advantage of AMD’s latest AM5 socket and B650 chipset to unleash the full potential of Ryzen 7000 series processors with DDR5 memory and PCIe 4.0 support.
The MSI PRO B650M-P is built on the AM5 platform, supporting AMD Ryzen 7000 series processors. Paired with the B650 chipset, it enables high-speed data processing and efficiency, making it a perfect choice for both gaming rigs and professional workstations. The board is also future-proof, supporting the evolving AM5 platform expected to accommodate future CPU generations.
One of the standout features of the PRO B650M-P is its support for DDR5 memory, offering significant improvements over DDR4 in terms of speed, efficiency, and bandwidth. The motherboard supports up to 128GB of dual-channel DDR5 RAM with frequencies reaching beyond 6000+ MHz (OC), allowing smoother multitasking and enhanced performance for demanding applications like video editing, 3D rendering, and gaming.
The MSI PRO B650M-P is engineered to keep up with high-speed storage and graphics demands. It includes:
1x PCIe 4.0 x16 slot for modern graphics cards
1x M.2 Gen4 x4 slot for NVMe SSDs, ensuring ultra-fast boot and load times
4x SATA III ports for additional SSDs or HDDs
This blend of storage options ensures you can configure your system for both speed and capacity.
Stability under heavy loads is essential, and MSI doesn’t cut corners. The motherboard features a 6-layer PCB, premium 7-phase power design, and high-quality thermal pads for VRMs. These ensure consistent power delivery and efficient heat dissipation, extending the life and performance of the components.
Despite its compact mATX size, the MSI PRO B650M-P offers rich connectivity:

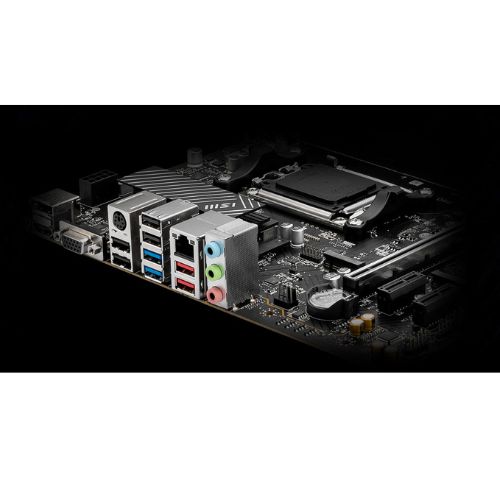

Rear I/O Ports: HDMI, USB 3.2 Gen 1 Type-A, USB 2.0, PS/2 combo, Realtek Gigabit LAN
Internal headers: USB 3.2 Gen1 front panel connector, ARGB and RGB headers
Audio: 7.1-channel high-definition audio powered by Realtek ALC897
This ensures seamless integration for all your peripherals, external storage, and display needs.
MSI includes its user-friendly Click BIOS 5, providing intuitive control over system settings, fan profiles, and overclocking. Additionally, tools like MSI Center and Driver Utility Installer simplify the management of software updates and system optimization.
Whether you’re building a budget-friendly gaming PC, a professional editing workstation, or a reliable office system, this motherboard strikes the perfect balance between price, performance, and future-proofing. It’s an excellent choice for:
Gamers upgrading to Ryzen 7000 series
Content creators needing DDR5 bandwidth
System builders requiring compact form factor without sacrificing features
The MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard is a future-ready platform for PC builders who want the best of modern performance at an affordable price. With support for DDR5, PCIe 4.0, high-speed storage, and efficient power delivery, it brings high-end features to a wider audience in a space-saving design
