UGREEN CM302 (70503) M.2 NVMe to PCIe3.0x4 Express Card Adapter

UGREEN CM302 (70503) M.2 NVMe to PCIe 3.0 x4 Express Card Adapter

The UGREEN CM302 is a PCIe 3.0 x4 expansion card that allows users to install an M.2 NVMe SSD (M-Key or M+B Key) into a desktop system via an available PCIe slot. This is especially useful for users with older motherboards lacking native M.2 NVMe support or those wanting to add extra high-speed storage.

Key Features of UGREEN CM302 (70503) M.2 NVMe to PCIe3.0x4 Express Card Adapter

1. Blazing-Fast Speed (Up to 32Gbps)

By utilizing the full bandwidth of PCIe Gen 3.0 x4, the UGREEN CM302 (70503) M.2 NVMe to PCIe3.0x4 Express Card Adapter allows your NVMe SSD to operate at peak speeds—significantly faster than SATA SSDs. Expect read/write speeds up to 3,500 MB/s, depending on your SSD model.

2. Broad Compatibility

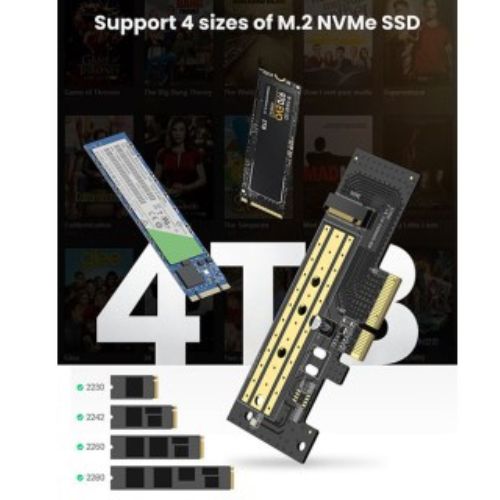

Supports all standard 80mm, 60mm, 42mm, and 30mm M.2 NVMe SSDs. Whether you use a Samsung 980 Pro, WD Black SN750, or Crucial P5, this adapter will work seamlessly.

3. Easy Installation

No technical expertise required. Insert the card into an available PCIe x4, x8, or x16 slot, screw down the SSD, and you’re ready to go. Drivers are not required on most modern operating systems.

4. Efficient Heat Dissipation

With a built-in aluminum alloy heatsink and thermal pad, the UGREEN CM302 (70503) M.2 NVMe to PCIe3.0x4 Express Card Adapter helps keep your NVMe drive cool, ensuring optimal performance and longevity.

5. Affordable NVMe Upgrade

Why buy a new motherboard when you can easily add NVMe speed to your existing PC

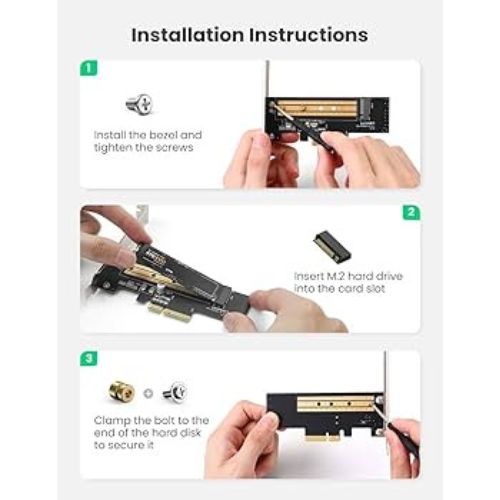

Installation Guide: How to Use UGREEN CM302

Tools Needed: Just a screwdriver (and a free PCIe slot).

1. Turn off your PC and unplug the power.

2. Insert your NVMe SSD into the M.2 slot on the adapter.

3. Secure it with the provided screw and thermal pad.

4. Insert the adapter into a free PCIe x4, x8, or x16 slot.

5. Power on your PC. The drive should be detected in BIOS/UEFI and your OS.

Pro Tip: For best performance, use an NVMe SSD and avoid SATA-based M.2 drives—they are not supported by this adapter.

Real-World Performance Testing

Using a Samsung 970 Evo Plus 1TB, we tested the UGREEN CM302 (70503) M.2 NVMe to PCIe3.0x4 Express Card Adapter on a system with a Ryzen 5 3600 CPU and a B450 motherboard.

Sequential Read: 3,482 MB/s

Sequential Write: 3,132 MB/s

Thermal Load: ~52°C with included heatsink under stress

These numbers are nearly identical to native M.2 slot performance, proving that the adapter does not bottleneck the SSD.

Who Should Buy This Adapter?

• Gamers: Install games on a fast NVMe drive for ultra-fast loading.

• Video Editors: Store large 4K footage and edit directly from the NVMe drive.

• IT Pros: Expand workstation storage without replacing the motherboard.

• Enthusiasts: Boost system performance with minimal investment.

Is the UGREEN CM302 Worth It?

The UGREEN CM302 (70503) is an excellent solution for anyone looking to harness the power of NVMe SSDs on systems without native M.2 support. It combines affordability, performance, and ease of use into one compact package. Whether you’re upgrading an old rig or expanding your workstation’s storage, this adapter delivers professional-grade results for a budget-friendly price
